The Falcon Product Family
Four critical subsystems. One unified ecosystem. Designed to work together seamlessly for maximum reliability and performance.

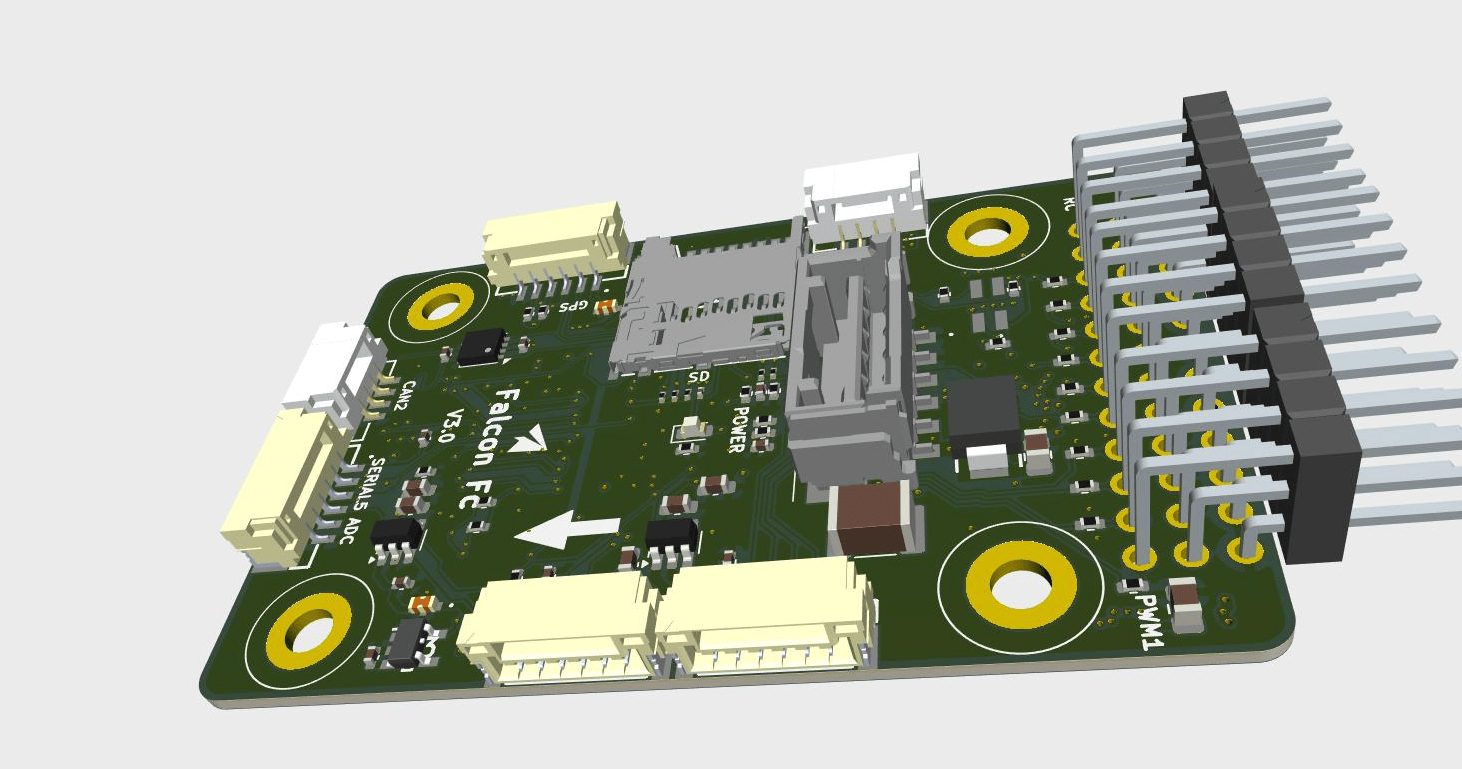

Falcon FC
The brain of the operation. Falcon FC is a high-performance autopilot flight controller built on a powerful STM32H7 processor with triple-redundant IMU sensors, hardware failsafes, and real-time operating system support.
- Triple-redundant IMU (Gyro + Accelerometer)
- STM32H7 480MHz ARM Cortex-M7 Processor
- ArduPilot & PX4 compatible firmware
- Built-in barometer, magnetometer & vibration isolation

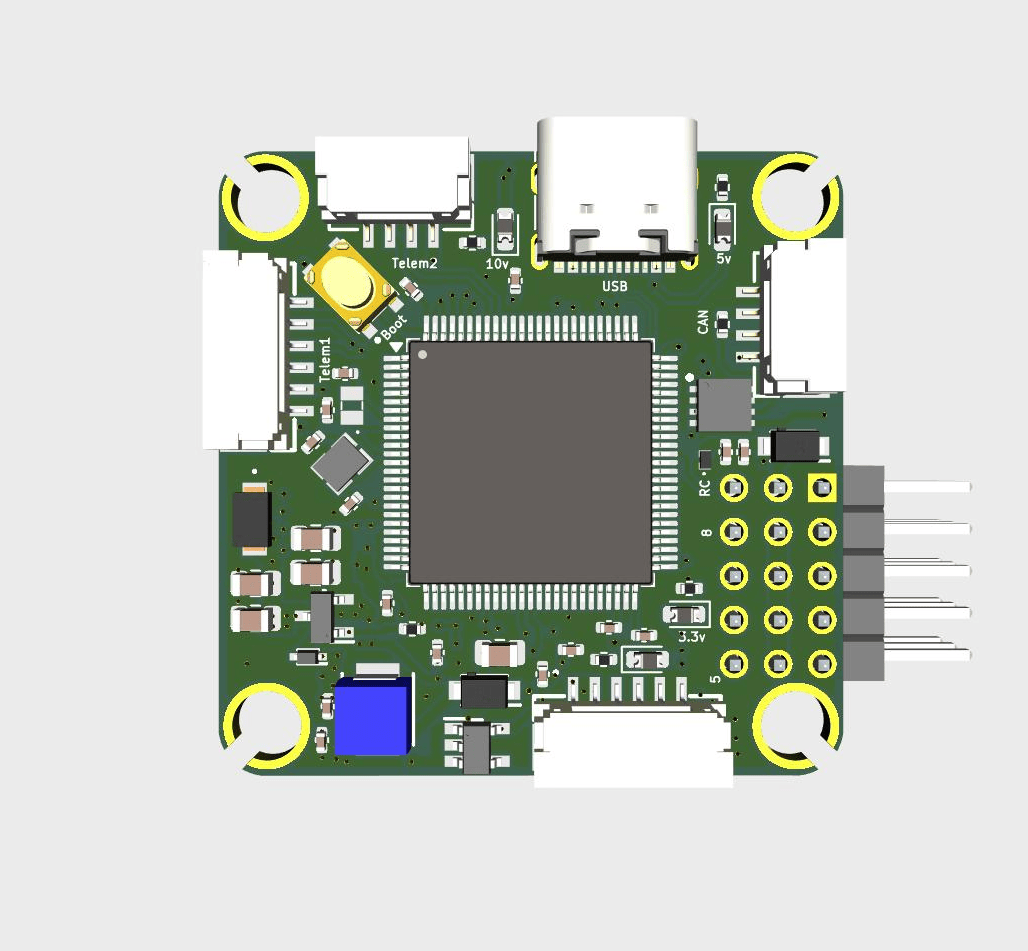

Falcon FC Mini
Same Falcon DNA, half the size. FC Mini is an ultra-compact autopilot designed for sub-250g drones, tight builds, and weight-critical platforms ā with dual-redundant IMU and full ArduPilot support.
- Dual-redundant IMU (ICM-42688-P Ć 2)
- STM32H743 400MHz ARM Cortex-M7
- 30.5 Ć 30.5mm mounting
- Only 12g ā ideal for sub-250g builds
Falcon GPS
Centimetre-accurate positioning for autonomous navigation. Falcon GPS is a multi-constellation GNSS receiver with RTK support, delivering rock-solid position fixes even in challenging RF environments.
- Multi-constellation: GPS, GLONASS, Galileo, BeiDou
- Upto 30 cm accuracy
- Integrated compass / magnetometer
- Anti-jamming & anti-spoofing technology
Falcon SDR
A versatile, field-programmable radio platform. Falcon SDR gives you full-spectrum flexibility ā reprogram waveforms on-the-fly for telemetry, video downlink, spectrum monitoring, or electronic warfare applications.
- Wideband coverage: 70 MHz ā 6 GHz
- FPGA-based real-time DSP engine
- Full-duplex TX/RX with configurable bandwidth
- GNU Radio & MATLAB/Simulink integration
Falcon Radio Link
Reliable, long-range command-and-control communication. Falcon Radio Link provides an encrypted, low-latency data link between the ground control station and your UAV ā even in contested RF environments.
- Up to 40 km line-of-sight range
- AES-256 encrypted data channel
- Frequency-hopping spread spectrum (FHSS)
- MAVLink telemetry + RC control in one link
